Product Details:
Payment & Shipping Terms:
|
| Grade: | SS 304, 316l, 321, Duplex, Hastelloy, Etc | Wire Size: | 1*2,mm 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm Etc |
|---|---|---|---|
| Support Rod: | 2*3mm, 3*4.6mm Etc. | Slot: | 0.05-100mm |
| Max Size: | 4000*4000mm | End Connection: | Plain Beveled Ends, Flanged Or Threaded Couplings |
| Length: | As Your Requiremens | Inner Diameter: | 60-1300mm |
| Highlight: | wedge wire screen pipe,water well pipe |
||

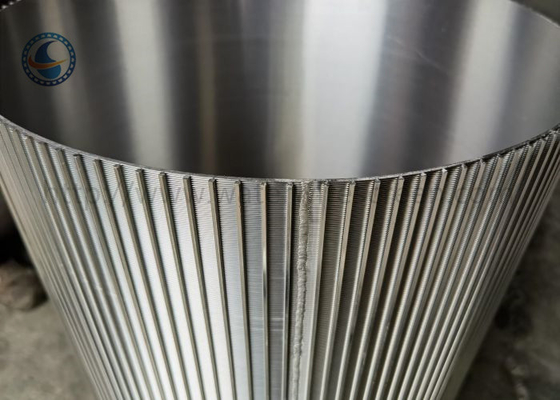

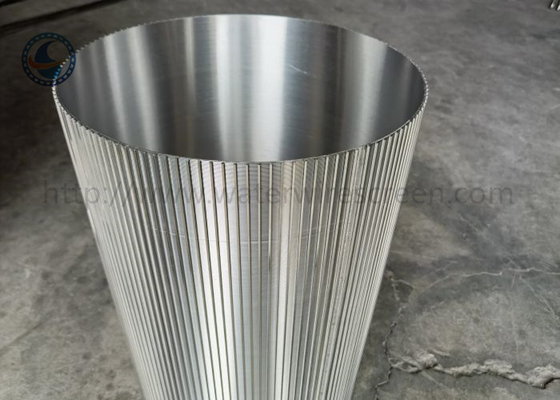

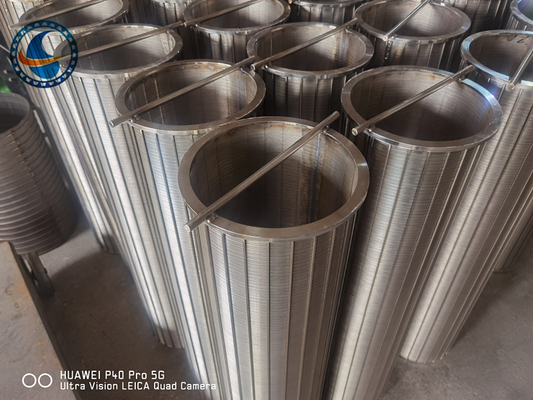

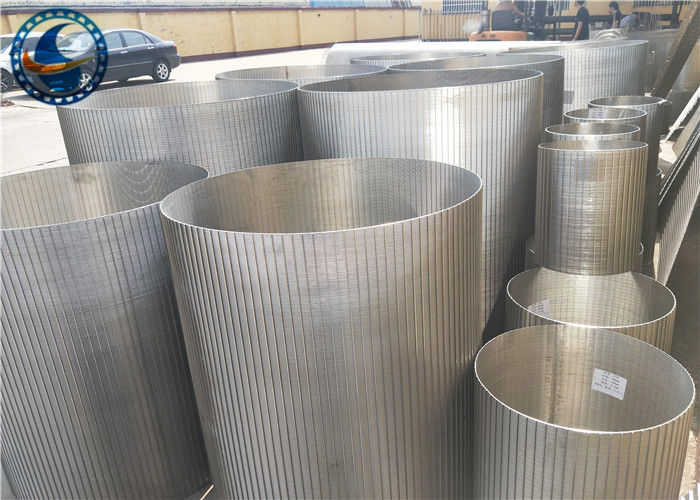

Stainless Steel Reverse Rotary SLotted Wedge Wire Screen Drum
Stainless Steel Reverse SLotted Wedge Wire Screen Tube With Reinforcing Rib
The wedge mesh filter core is welded with stainless steel wedged wire.
The filtration precision is 0.02mm-1000mm.
The wedge-shaped wire mesh screen is welded by the stainless steel wedged wire and the support strip, mainly including filter plate, filter basket, filter core and so on.
Our advantages:
1, manufacturer professional production, high-quality filter materials, quality and low price;
2, professional product design and development team; independent research and development of slotted special-shaped edge machine, the filter for any shape of the one-off operation.
| Certification: | custom-made | Brand: | HengYuan company |
| Properties: | long service life | Use: | screening |
| Type: | wire wound filter | Material: | Metal wire mesh |
| Scope of application: | filter applicable | Object | liquid |
| Working temperature: | 10-800 C | Maximum working pressure difference: | 10-100MPa |
| Filtering accuracy: | 0.02-200mm | Wrap Wire | 1*2mm,1.2*2mm,1.5*2mm |
| Raw water pressure: | 0.2-10KG/c | Support rod: | 2*3mm |
| Model: | a variety of | Specifications: | a variety of |
| Trade mark: | NO | Packing: | Wooden box |
| Output: | 10000 | Reinforcing Rib: | 2*10mm,5*20mm etc |
Reverse Wedge Wire Screen Filter type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
Reverse Wedge Wire Screen Feature:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
Reverse Wedge Wire Screen Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
Reverse Wedge Wire Screen Basic Parameters :
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
