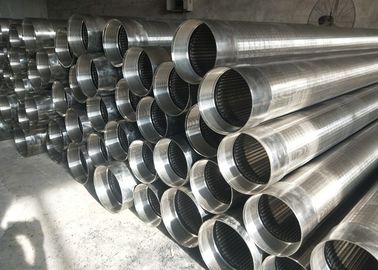

High Strength Stainless Steel Johnson Wire Screen With High Corrosion Resistance
Stainless Steel V shape Wedge Wire Wrapped Slotted Screen Pipe For Filteration
Water Well Johnson Screen Pipe Product Description:
Stainless Steel V shape Wedge Wire Wrapped Slotted Screen Pipe For Filteration is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Water Well Johnson Screen Pipe Specification:
Stainless Steel V shape Wedge Wire Wrapped Slotted Screen Pipe For Filteration
| Material | Stainless steel |
| Grade | 201,205, 304,304L, 321, 316L |
| O.D | 89mm 117mm 219mm 273mm 325mm etc |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" etc |
| Slot size | 0.5 mm,0.63mm, 0.75mm, 1.0mm |
| Length | 2.9m / 5.8 m to fit container, Upto 6000mm |
| End connection | Welded rings |
| Wire size | 63# 93# 118 # |
| Support rod | ø3.8-5.0mm round wire |
| Wire shape | Vee shaped |
Water Well Johnson Screen Pipe Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Water Well Johnson Screen Pipe Characteristic:
Stainless Steel V shape Wedge Wire Wrapped Slotted Screen Pipe For Filteration
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Application:
Stainless Steel V shape Wedge Wire Wrapped Slotted Screen Pipe For Filteration
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
Water Well Johnson Screen Pipe OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Water Well Johnson Screen Pipe Pictures:
