Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 205, 304 , 304L, 316L |
|---|---|---|---|
| Slot Size: | 0.5 Mm, 0.63mm, 0.75mm, 1.0mm | Diameter: | 3" 4" 6" 8" 10" 12" 14" |
| Length: | 2900mm / 5800mm , Up To 6 Meter | End Connection: | Welded Rings |
| Package: | Woden Box,Container | Wire Shape: | V Shape |
| Filter Type: | From Outside To Inside | ||
| Highlight: | water well sand screen,johnson stainless steel well screens |
||
SS 205 / 304 / 316 / 316L Johnson Screen Pipe , Johnson Wire Wrap Screen Tube
Product Description:
Stainless Steel 205 / 304 / 316 / 316L Johnson Wire Wrap Screen Tube is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Specification:
| Material | Stainless steel |
| Grade | 205, 304,304L, 316L |
| O.D | 89mm 117mm 219mm 273mm 325mm |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" |
| Slot size | 0.5 mm,0.63mm, 0.75mm, 1.0mm |
| Length | 2.9m / 5.8 m, 100-6000mm |
| End connection | Welded rings |
| Wire size | 63# 93# 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Characteristic:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Application:
Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells

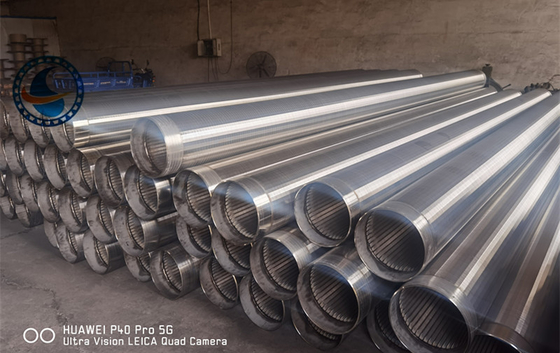

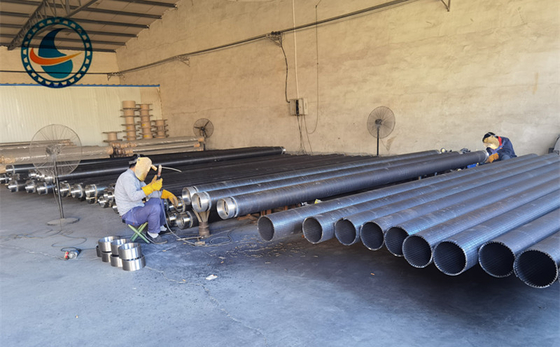

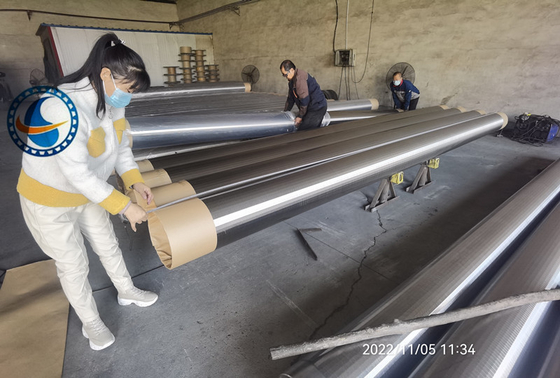

Pictures:
