| Package: | Woden Box, Or Plastic Bag In Container | Slot Size: | 1.0 Mm |
|---|---|---|---|
| Material: | Stainless Steel | Diameter: | 117mm, 168mm, 219mm |
| Length: | 2.9M | Grade: | 304 |
| End Connection: | Male/female Threaded | Hole Shape: | Vee Shaped Slot |
| Type: | Cylinder | Usage: | Liquid Filter, Solid Filter |
| Wire Size: | 3*4.6mm | Support Rod Size: | ø3.8mm Round Wire |
| Highlight: | water well screen,sand control screens |
||

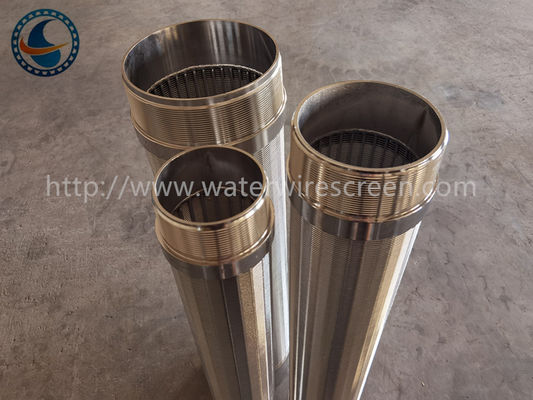

Stainless Steel 304 4-1/2", 6-5/8", 8-5/8" Rod Based Continuous Slot Wedge Water Wire Screen
It is also be named Johnson screen cylinder, wedge wire screen, wound screen,Wire wrapped screen.
Water Wire Screen Product Description:
1: The Slot of SS Rod Based Continuous Slot Wedge Water Wire Screen the solder joint is firm, the permeability is good, the flowability is good, the occurrence of blockage is reduced, and the service life of the device is prolonged.
2: 304 SS Rod Based Continuous Slot Wedge Water Wire Screen ,Also be named Groundwater Well Screen, Drum FIlter is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded.
The picth of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter. The entire process is completed on fully computerized machines
Water Wire ScreenSpecificarion:
| Texture of material | Stainless steel |
| Product Grade | SS304, Also can be SS316L, SS321, 904L, Duplex 2205, 2507 etc. |
| O.D | 32mm - 1300mm |
| water wire screen Size | 4-1/2", 6-5/8", 8-5/8", Also can be 10-3/4", 12-3/4", 14", 16" etc |
| water wire screen Length | 2.9m and 5.8m in usual , to fit container |
| Solt size | 1.0mm, Also can be 0.5mm, 0.63mm, 0.75mm, 1.5mm etc. |
| End connection | Welded rings, Also can be male/female threaded, flange etc. |
| Wire size |
118# (3*4.6mm), Also can be 2*3.5mm, 2.2*3.5mm, 2.5*4mm, 3*5mm, 3*6mm etc |
| Support rod | ø3.8mm round wire, Also can be ø2.8-6.0mm, Or Vee shaped wire. |
| Wire shape | Must Vee shaped Wire |
Rod Based Continuous Slot Water Wire Screen Regular Specification:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Water Wire Screen Use:
High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Water Wire Screen OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Rod Based Continuous Slot material: mainly stainless steel, carbon steel galvanized or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 32 mm - 1300 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: Welded ring, Flange or male/female threaded connection.
